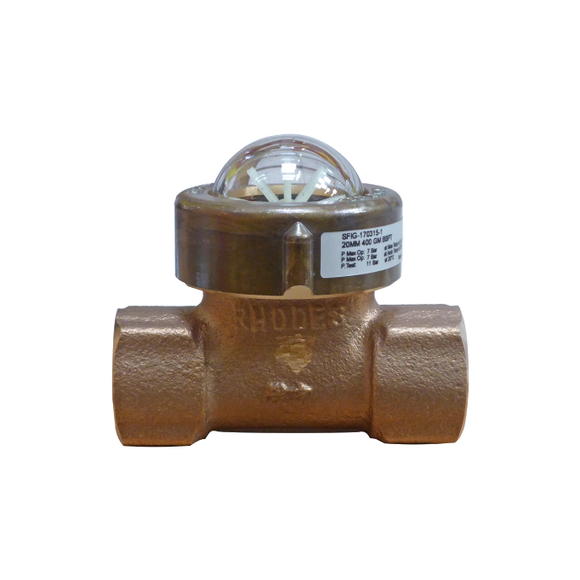

Rhodes Series 400 Sight Glass - UK Manufactured



The Rhodes 400 sight flow indicator is available with either a high sensitivity spinner or ball operating from 0.7 l/m (water). The nitrile seals and nylon spinner or PTFE ball give excellent chemical resistance which is further enhanced in the stainless steel version by the use of borosilicate glass as standard.
These compact sight flow indicators are used extensively in plant protection applications to show coolant or lubrication flow to pumps, compressors and engines. As an added advantage the series 400’s can be used in any orientation, apart from the ‘ball type’, which needs to be in the horizontal plane.

Sizes: 1/4", 3/8", 1/2", 3/4", 1"
Connections: Female BSPT Inlet x Female BSPT Outlet
Materials: Gunmetal or Stainless Steel
Maximum System Pressure: 7 Barg (GM) / 16 Barg (SS)
Temperature: 100 degC Max
