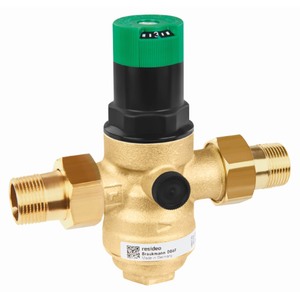

Resideo Braukmann D06F Pressure Reducing Valve

Resideo Braukmann D06F Pressure Reducing Valve



This is one of the most popular pressure reducing valves (PRV's) in the UK and Europe for use with drinking water. It is commonly used to reduce the incoming supply pressure to a property, even when there is a large flunctuation at the inlet.

Sizes: 1/2", 3/4", 1", 1.1/4", 1.1/2", 2"
Connections: Male BSP Inlet x Male BSP Outlet
Materials: Brass body, Synthetic bonnet
Max Inlet Pressure: 16 Barg
Outlet Pressure Range: 1.5 Barg to 6 Barg (Preset at 3 Barg)
Temperature: 70 degC Max
Approvals: DVGW, WRAS (upto 23 degC)
