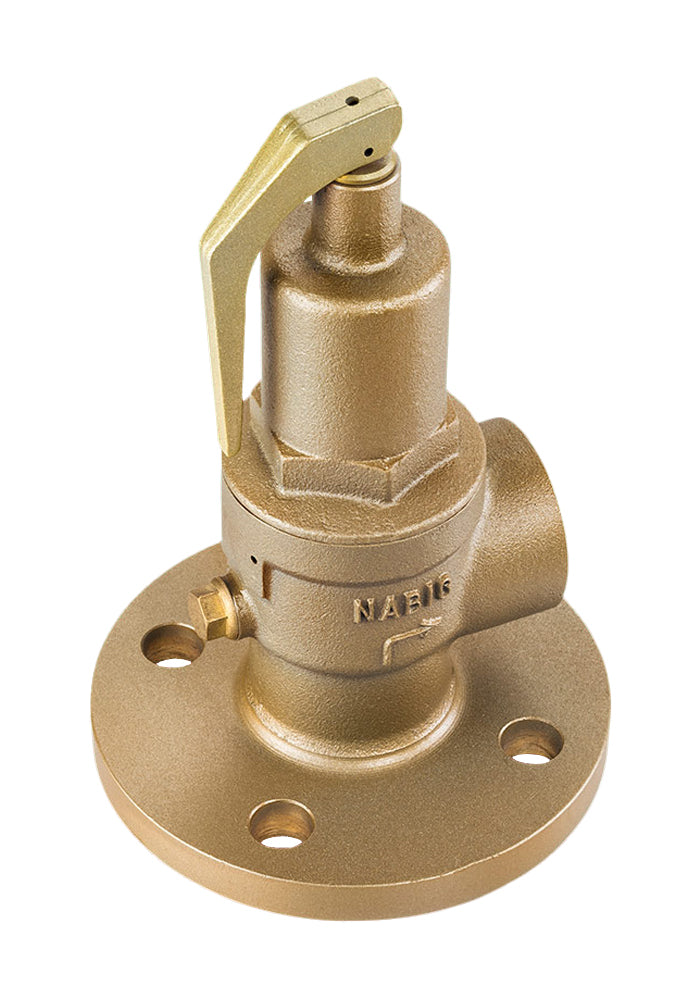

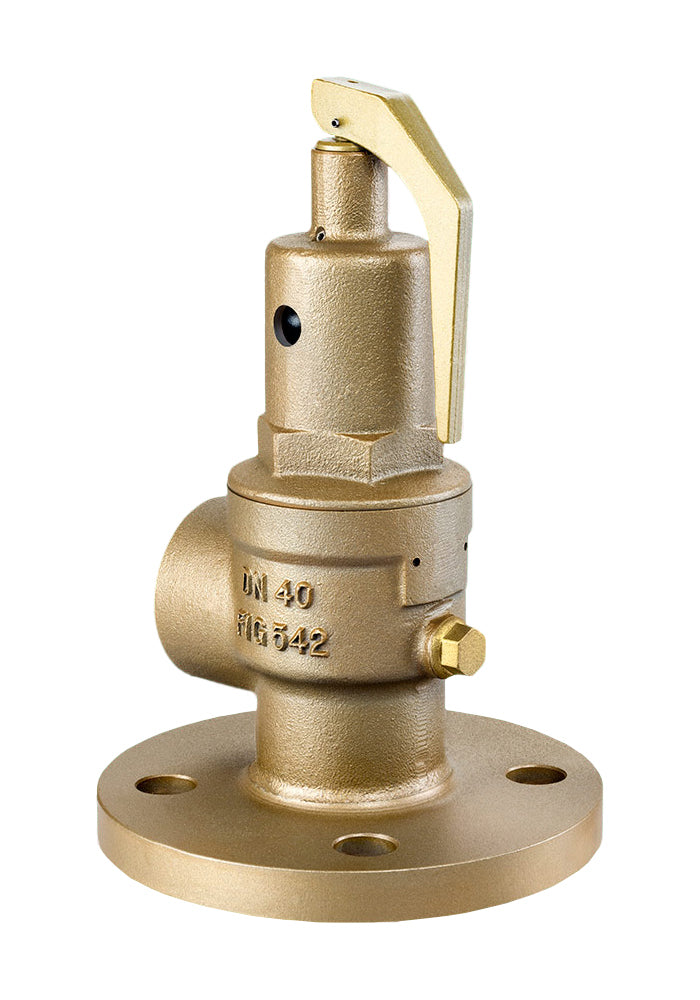

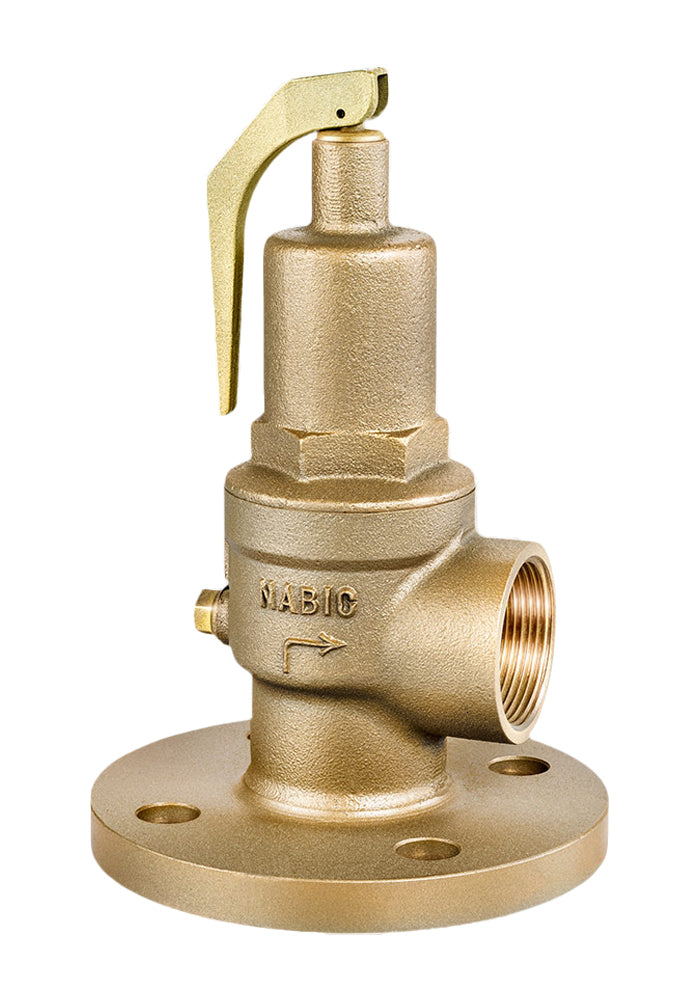

NABIC 542F Flanged Safety Relief Valve

  • £435.62
  • Save £-101.34

    The NABIC 542F flanged Safety Valve is an extremely versatile valve, suitable for use on hot water, steam or air. The NABIC 542F has been designed primarily for the protection of hot water boilers, however its wide range of applications make it an ideal general purpose safety valve. NABIC Valves now come with an Industry leading 5 Year Guarantee.

    Sizes: 1.1/4" (DN32), 1.1/2" (DN40), 2" (DN50), 2.1/2" (DN65), 3" (DN80)
    Connections: Flanged Inlet (PN16 or ANSI150) x Female BSPP Outlet
    Materials: Gunmetal Body, PTFE Seat
    Set Pressure: 0.3 Barg to 10.5 Barg
    Temperature: -20 degC to 195 degC Max
    Note: We set and test the valves here to the set pressure you require before shipping.
