Four Way Bench Mounted Drop Lever Gas Tap - 900034

This is a stock item. Order by 5pm Monday to Thursday and 4.30pm Friday for same day despatch.

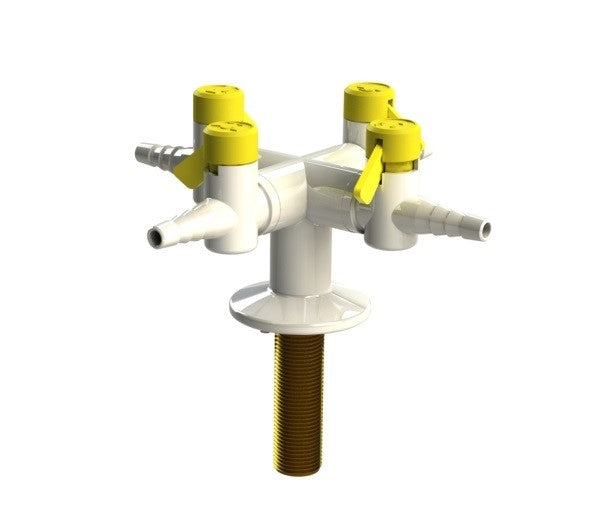

Four Way Bench Mounted Drop Lever Gas Tap.

The 900034 4 way bench mounted gas tap features drop lever handles in yellow to quickly identify if any taps have been left in the on position – a great safety feature.

These taps can be found in thousands of labs and they are incredibly popular within the education sector. It is constructed from solid brass and has a male 3/8″ BSP thread.

The gas tap features an integral ‘anti rotation pin’ which prevents the tap being twisted from the desk. An installation template comes with each tap to ensure a perfect fit. The gas tap holds the prestigious British Gas Approval and comes with an extensive 5-year warranty.

For any of your bench mounted drop lever gas tap enquiries please contact us on +44 (0)1482 601030 or email sales@nabicvalvesonline.co.uk

Part No: 900034NG-WA
Description: Four-way high visibility drop lever gas tap fixed serrated nozzle. Integral anti-rotation pin.
Applications: Standard laboratory gas tap for Bunsen burner type applications. Suitable for both natural and LPG gas applications.
Construction: All brass body, Rilsan plastic coated, white (RAL 9016). Identification coding to DIN13792
Connection and mounting: 3/8” BSP male flat ended shank x 60mm long with back nut. Standard anti-rotation base with location pin. Two mounting holes 17mm and 5mm diameter are required through the work surface, template enclosed.
Service: Natural or LPG gases
Pressure and Flow: Maximum work pressure 20 – 25 Mbar Flow Rate @ 20Mbar = 1 Cubic
metre/hour per nozzle.
Please note: The appliance should be used to size pipe work and not the gas valve. British Gas/BSI Certified. These items should only be installed by a person competent to do so.

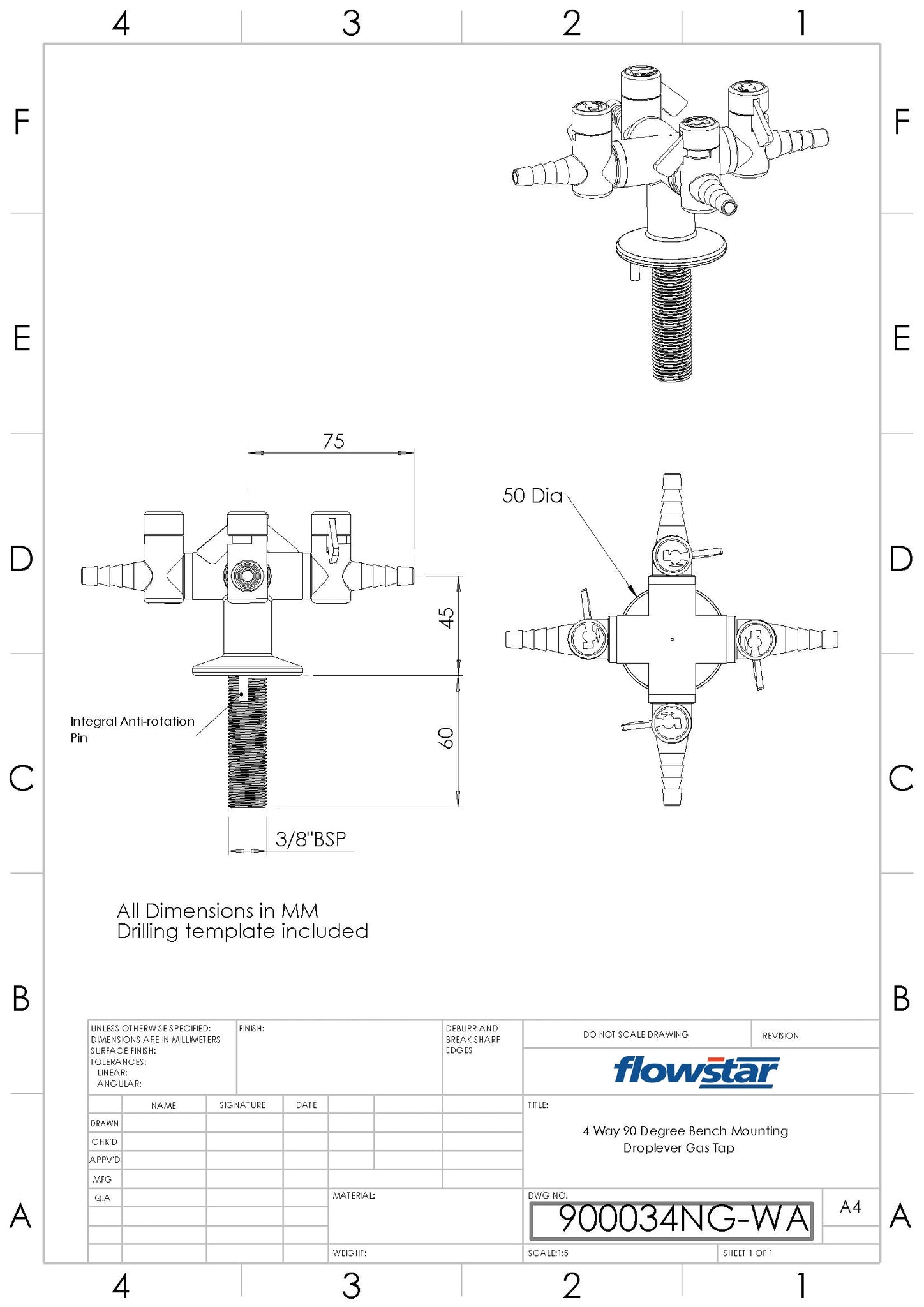

Four Way Bench Mounted Drop Lever Gas Tap - 900034 Datasheet
