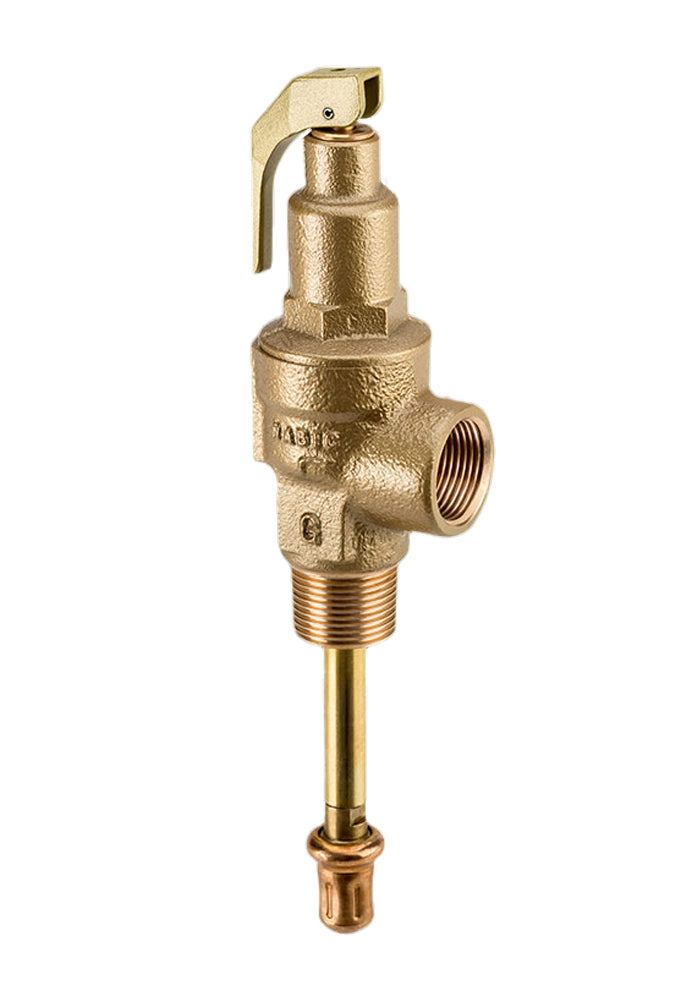

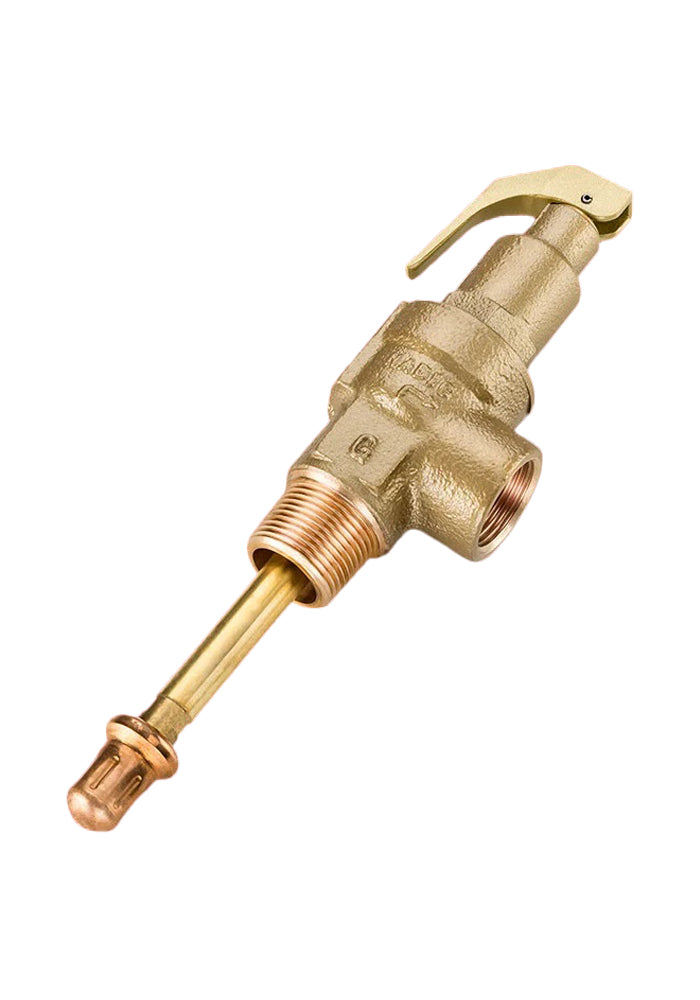

NABIC 500T Combined Pressure & Temperature Relief Valve

The NABIC 500T Combined Pressure & Temperature Relief Valve has been designed for use on unvented hot water supply systems, where protection against excess temperature is required in addition to pressure protection.

The NABIC 500T's pressure and temperature elements operate independently, thereby providing dual safety protection in the one valve. NABIC Valves now come with an Industry leading 5 Year Guarantee.

For help selecting the correct size valve please see our NABIC 500T Pressure & Temperature Relief Valve Sizing Guide before purchasing.

Setting and testing of the valve is included free of charge, along with a pressure test certificate confirming this.

If you have an existing NABIC valve that requires testing and recertifying, why not try our NABIC valve test and recertify service.

Alternatively, if you require a spares kit for your valve then head to our NABIC 500 valve spares kit product page.

For any of your NABIC valve enquiries please contact us on +44 (0)1482 601030 or email sales@nabicvalvesonline.co.uk.

Sizes: 3/4" (DN15*), 1" (DN20*), 1.1/4" (DN25*), 1.1/2" (DN32*), 2" (DN40*), 2.1/2" (DN50*)
Connections: Male BSPT (Taper) Inlet x Female BSPP (Parallel) Outlet
Materials: Gunmetal Body, Viton Seat
Set Pressure: 1.0 to 12.5 Barg (DN15 to DN25), 0.4 to 12.5 Barg (DN32 to DN50)
Max Temperature: 95 degC (Is factory set to 95 degC and cannot be changed)
Note: *The DN value embossed on the body of the valve indicates the NABIC 500 body size used to make this valve and has no relationship to the inlet or outlet size. We set and test the valves here to the set pressure you require before shipping.

NABIC Fig 500T Combined Pressure & Temperature Relief Valve Selection Guide

NABIC Fig 500T Combined Pressure & Temperature Relief Valve Datasheet

NABIC Fig 500T Installation, Operating and Maintenance Instructions

Full NABIC Product Brochure

How to correctly identify your NABIC valve
