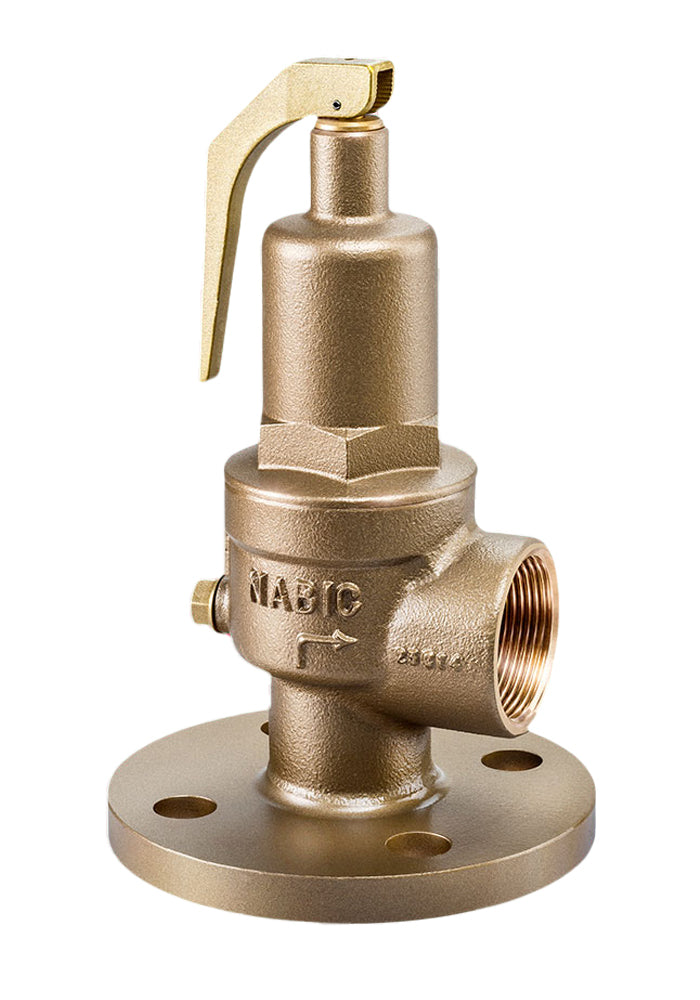

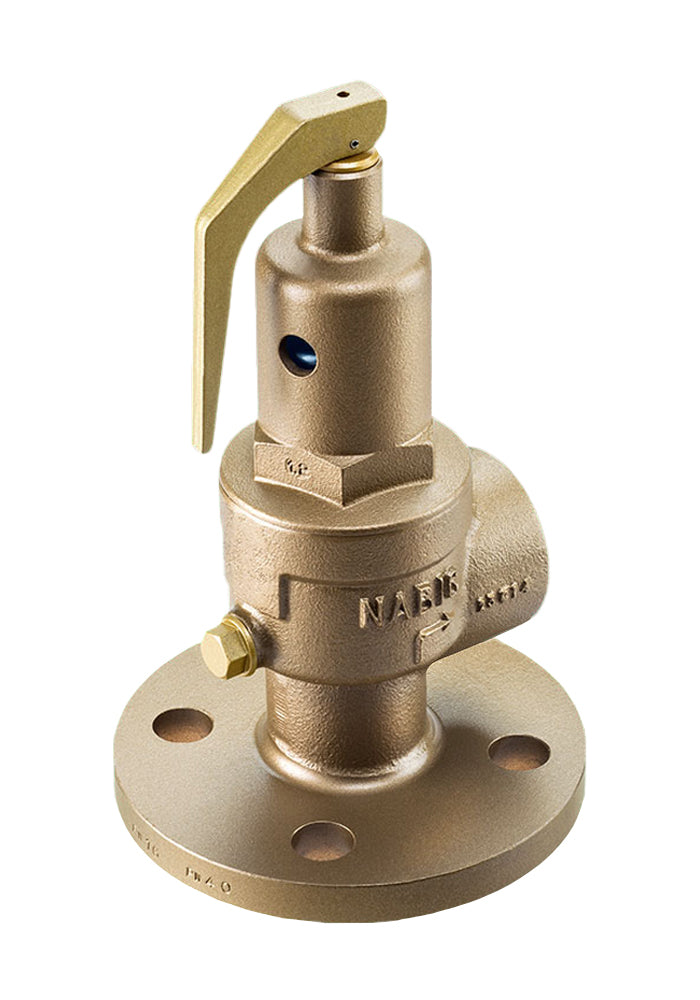

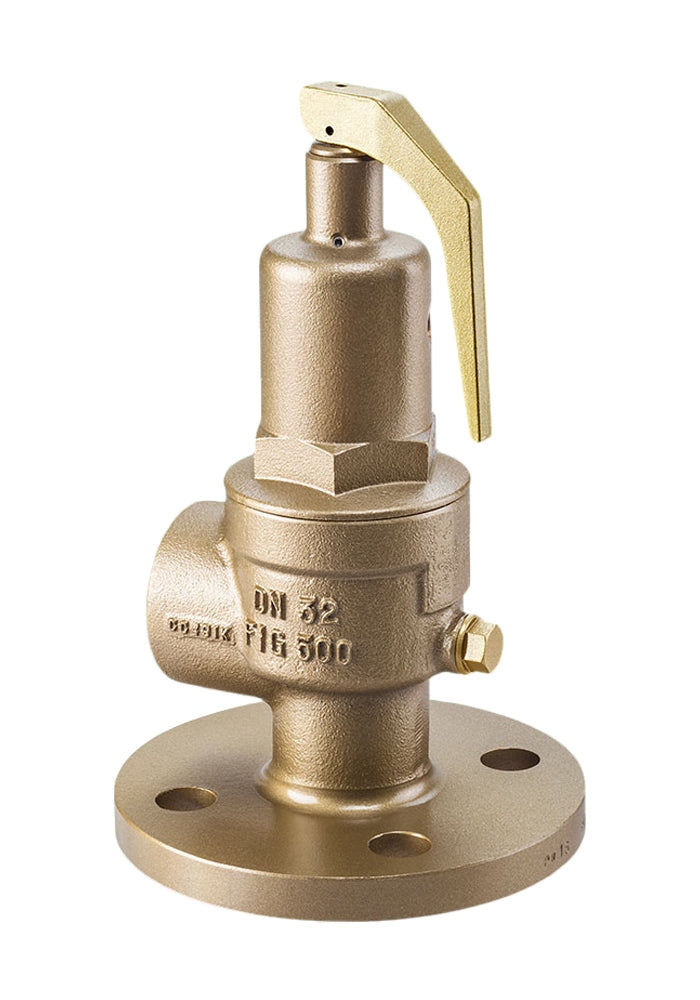

The NABIC 500F Flanged High Lift Safety Valve has been designed primarily for use on unvented hot water heating systems, where a high capacity, emergency steam relief capability is required. The NABIC 500F has a high capacity and resilient PTFE seating, also make it ideal for steam, air, and inert gas applications. A PTFE to Viton seating design is also available where greater seal tightness is required. NABIC Valves now come with an Industry leading 5 Year Guarantee.
Setting and testing of the valve is included free of charge, along with a pressure test certificate confirming this.
If you have an existing NABIC valve that requires testing and recertifying why not try our NABIC valve test and recertify service.
Alternatively, if you require a spares kit for your valve then head to our NABIC 500 valve spares kit product page.
Sizes: 3/4" x 1" (DN20), 1" x 1.1/4" (DN25), 1.1/4" x 1.1/2" (DN32), 1.1/2" x 2" (DN40), 2" x 2.1/2" (DN50), 2.1/2" x 3" (DN65)
Connections: Flanged Inlet (PN16 or ANSI150) x Female BSPP Outlet
Materials: Gunmetal Body, PTFE Seat
Set Pressure: 1.0 to 12.5 Barg (DN20 to DN25), 0.4 to 12.5 Barg (DN32 to DN65)
Temperature: -20 degC to 195 degC Max
Note: We set and test the valves here to the set pressure you require before shipping.
